Welcome back! Last time we have discussed the interaction of two particles on a lattice.

Now it’s time to come back to this fabulous thing. This time, the conditions have changed. Imagine having an $L \times L$ lattice with $N$ particles in it. They are attracted to each other in one way or another. What properties can you observe there? Can we see some ‘real’ physical things, such as melting or solidifying? We’ll use the Metroplis-Hastings algorithm again, now a more efficient one. Code can be found on github, as usual.

Monte-Carlo redesigned

In our previous attempt we had two particles moving on a lattice in an intricate dance. But they were hardcoded to be a two-particle system so that’s not a good way to go. Ilya suggested a very nice thing and from now on every calculation is done using his implementation of Metropolis-Hastings algorithm. You should really check out his github (link above), you will even find an accurate MC solver for a wavefunction of Helium atom.

You can find and explanation of what Metropolis-Hastings algorithm does in the previous chapter, we won’t discuss it here.

Here’s the simplification of the algorithm

1. Initiate the system, number of particles, the lattice size and the iteration count.
2. Generate and initial configuration of particles through random placing (use the set! so you don’t have to worry about duplicates)
3. Start iterations:
   1. change the position of a random particle and make a decision: stay in the old configuration or go to a new one
   2. speed thing up! look for a totally random configuration and decide whether you want to go there — this helps the simulation converge quicker (debatable)
4. You’re great. Keep going like this until you reach the desired number of iterations.

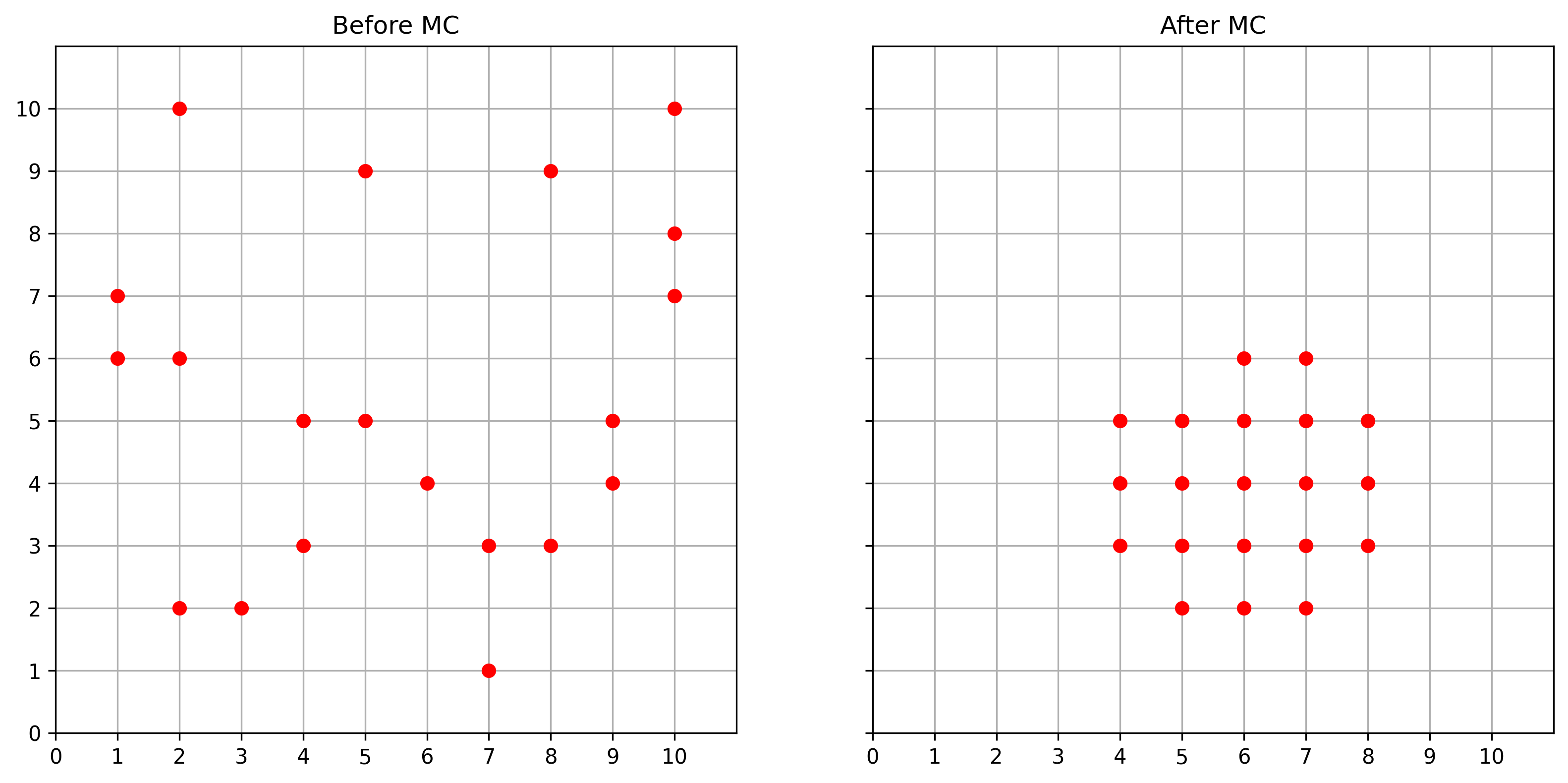

You may say that the additions are very obvious and easy to implement, but they weren’t for me. So I find it fascinating that such a simple code can converge a bunch of particles scattered in space into something that looks like a real crystal structure.

Running systems

We can run our systems with different temperatures. The original algorithm by Ilia was implemented with the inverse potential: $$U(r)=-\frac{1}{r}$$ But this would make more sense if we wanted to have Coulombic interactions from charges with different signs (which we don’t yet). So I’ve added the Lennard-Jones potential parametrized in such a way that the depth of the well $\varepsilon=-5.0$, the $\sigma$ parameter is set so as to have $$r_{min}=2^{1/6}\sigma=1$$

Potential: $$U(r)=4\varepsilon \left (\left(\frac{\sigma}{r}\right)^{12}-\left(\frac{\sigma}{r}\right)^6 \right )$$

Let’s run our simulations for $8000$ iterations (for the speed of it) for a range of temperatures of $0–4$ with the step $T = 0.2$ and see where it takes us.

Melting

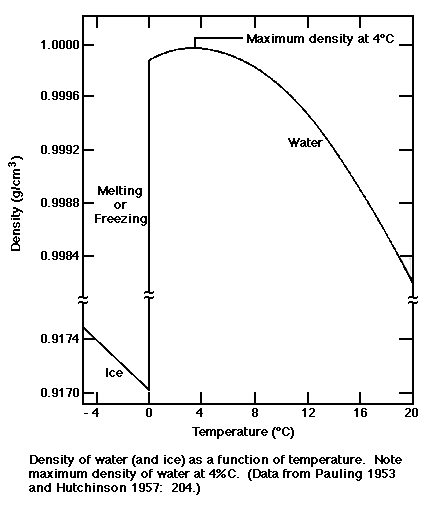

So if we look at what could happen during the melting process, we would see a sudden shift in density (see example with the water below). This is what happens when we have a first-order phase transition. Or, it is rather a definition of one — in the Ehrenfest classification.

Of course, we would need to have a large crystal to simulate our system accurately and it would have to have better potentials than we do. We would also need a way to calculate density on a grid, and I have no clue how to do that (for example, what do we do if our system splits up into clusters?).

I have a solution of a kind. Instead of density, we’re going to be looking for the average distance between the particles. Interesting enough things emerge there.

Inverse potential

We start with the simplest of potentials. It gives nice crystals at low temps, but can we see anything behind that? Can we see any ‘melting’?

The answer is both yes and no.

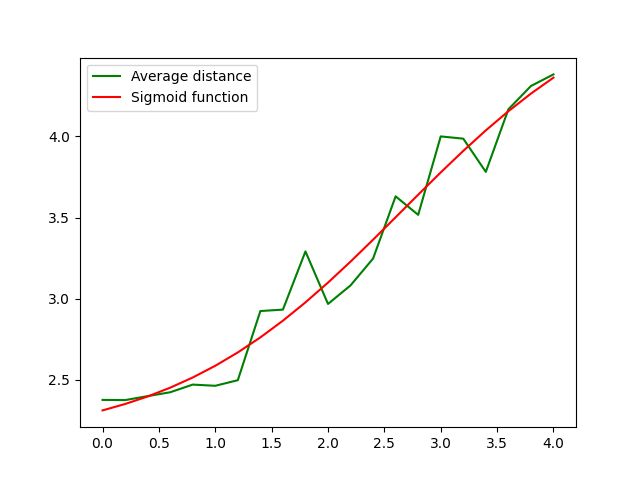

Since the true phase change should be a discontinuation in density, I thought it would be nice to fit it with the sigmoid function which is like a step function (sometimes). And we see that the inverse potential is kind of changing its density… but not with the speed we want it to. Since we work in dimensionless units, temperature of $4$ is a lot.

Lennard-Jones

LJ is probably the most popular choice to simulate intermolecular interactions. And it gives way nicer results (but takes longer to compute, though)

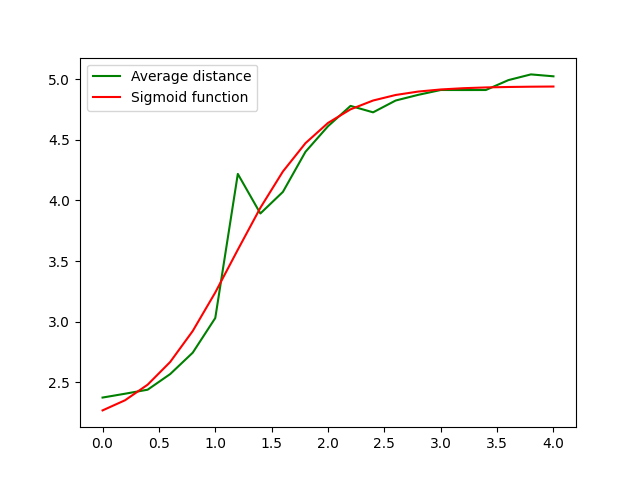

This looks way better! It isn’t a ’true’ melting yet, but it’s way more definitive in my opinion. We could steal some force fields from molecular dynamics, but it’s getting heavier to compute and I don’t think this should be the goal of the project.

There is a spike around $1.25$, and I’ve seen it many times in slightly different positions. I believe what is happening is that system starts fluctuating heavily near the critical point and we get these jagged lines. But I’ll be glad if someone has another explanation and can prove me wrong.

Polymer chains

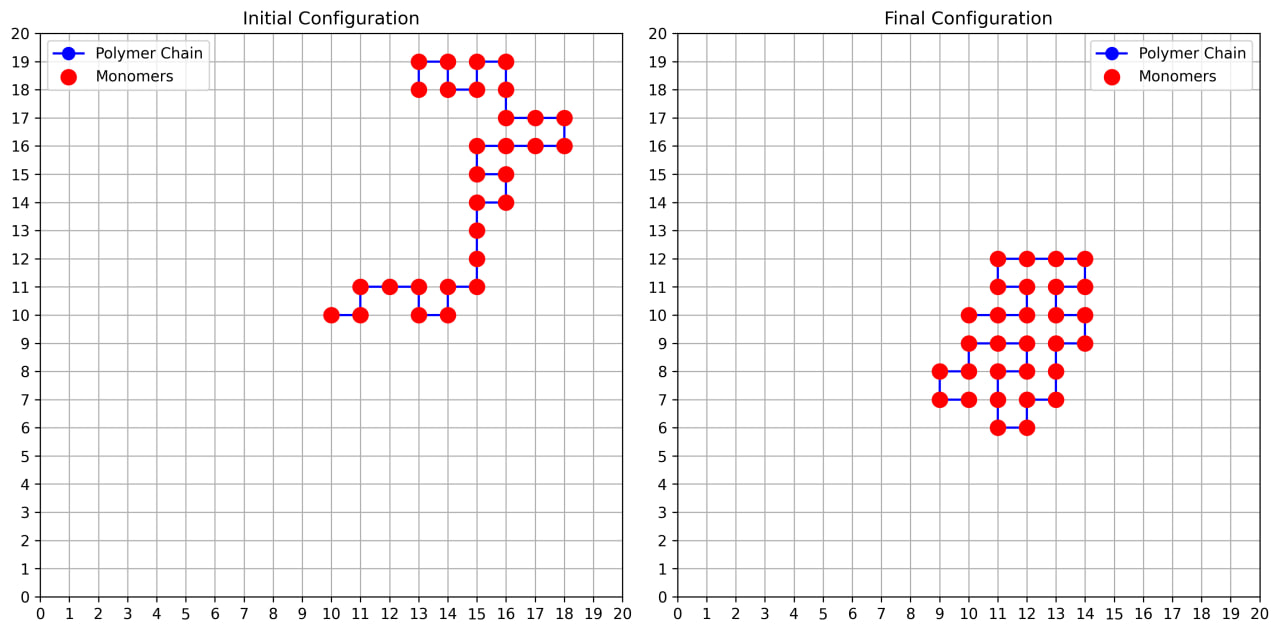

We’ve recently rolled out version 0.5.0 - NOW WITH POLYMERS. The approach is pretty much the same, but we have the polymer chain instead of single particles.

Here the single-monomer move scheme was used. Select a random piece of polymer chain, then propose a random move and accept it if it’s valid and approved by the MH algorithm. There is also a pivot and a snake-like scheme.

One funny artifact I have not figured out yet — polymer chains don’t want to move at zero temp. And it’s really weird, since we have special fixes for that in the code. This would take me some research to figure out yet.

I would like to melt some polymers but it’d be nicer to have more than one chain on the screen and to look into the interaction of those (also I ran into the bug in the code I don’t know how to fix yet). So we’ll leave it at that and maybe I will update this post with new cool graphs.

Final notes

This simple task, which hadn’t left my mind for nearly two years, proved to be a fun coding and learning experience. It’s amazing that we can see ‘crystals’ forming and even something that resembles the actual melting process. I mean, such simple rules give us such complex behavior - I guess, it’s just like in real life.
